FPL Dedicated Off-line Filter Panel

A dedicated contamination solution for bulk oil handling, fluid transfer and reservoir or gearbox conditioning. Enhance cleanliness by adding the FPL to an existing hydraulic system and extend the life of in-line filters.



Download FPL Brochure

Dimensions

Height

22” (58 cm)

Length

42” (107 cm)

Depth

12” (31 cm)

Weight

138 lbs (63 kg)

Dimensions are approximations taken from base model and will vary according to options chosen.
Connections

Inlet with 3-way valve

1” FNPT

Outlet

1” FNPT

Operating Temperature

Fluid Temperature

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 104°F

(-20C to 40C)

ΔP Indicator Trigger

Standard MF110 Assemblies

18 psi (1.2 bar)

Special Options D1 + S1 (S75/D)

22 psi (1.5 bar)

Special Option D2 (DFN)

32 psid (2.2 bard)

Special Option P1 (PFH)

73 psid (5 bard)

Filter Assembly Bypass

Standard MF110 Assemblies

25 psid (1.7 bard)

Special Options D1 + S1 (S75/D)

25 psid (1.7 bard)

Special Option D2 (DFN)

50 psid (3.4 bard)

Special Option P1 (PFH)

102 psid (7 bard)

Materials of Construction

Frame

Carbon steel with industrial coating
Electric Motor

TEFC, 56-145 frame

1 hp, 1450-1750 RPM

Motor Starter

MSP (motor starter/protector) in an IP65, aluminum enclosure with short circuit and overload protection.

pump

Cast iron, positive displacement gear pump with internal relief. Maximum pressure on pump inlet 15 psi (1 bar). Consult factory for higher pressures.

Pump Bypass

Full bypass at 150 psi (10 bar)

10 GPM pump is rated for intermittent duty only at pressures above 100 psi. Continual operation with dual clogged filters resulting in operating pressures over 100psi will reduce pump life and/or cause premature pump failure.
Pneumatic Option Air Consumption

~40 cfm @ 80 psi

Air consumption values are estimated maximums and will vary with regulator setting.
Media Description

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000 (βx ≥ 200)

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000 (βx ≥ 200)

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

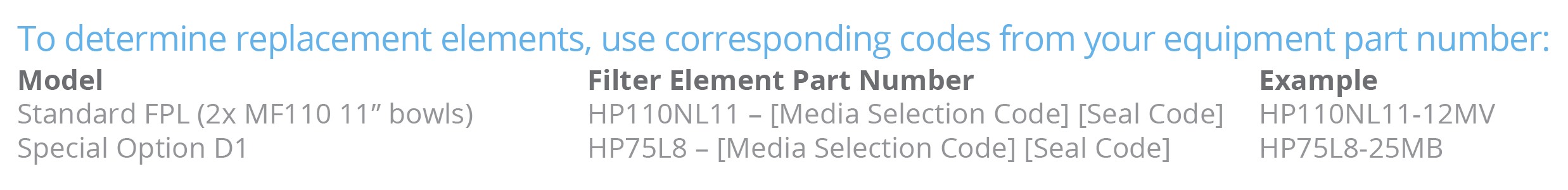

Replacement Elements
FPL kfactors
Filter Sizing Guidelines

Filter assembly clean element ΔP after actual viscosity correction should not exceed 10% of filter assembly bypass setting. See filter assembly sizing guidelines & examples. For applications with extreme cold start condition contact Hy-Pro for sizing recommendations.

MF90-110 ΔP Factor

MF KFactors

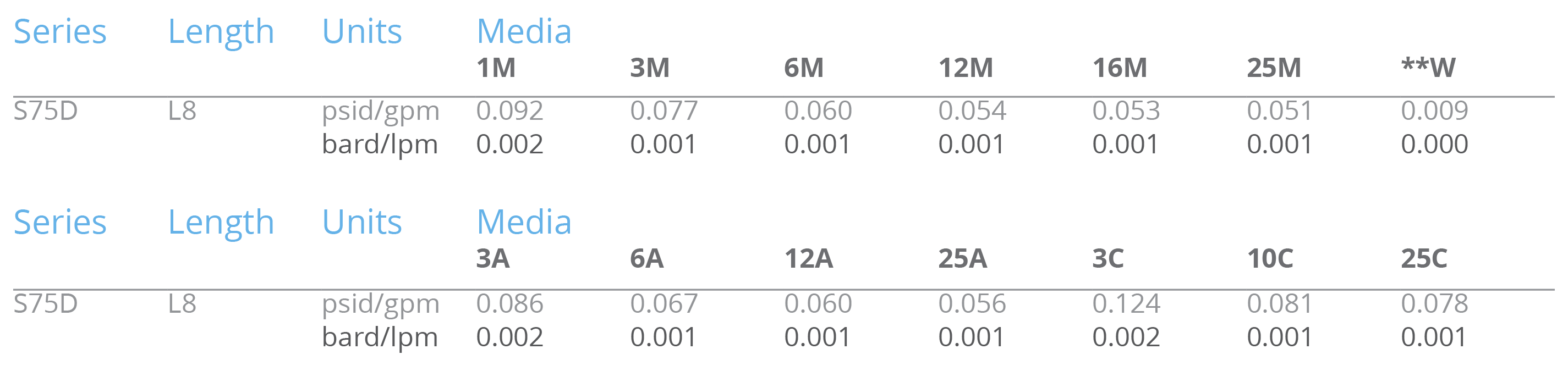

S75D ΔP Factor

S75D kfactors

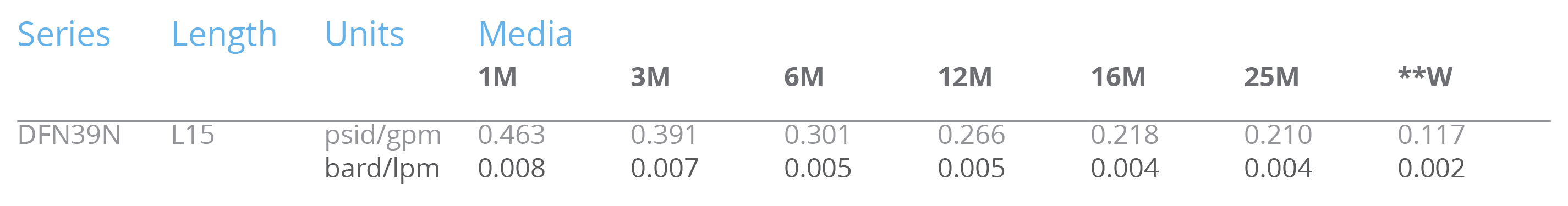

DFN39 ΔP Factor

DFN39N kfactors



Viscosity

2-5000 cSt

When sized and installed appropriately. Contact factory for applications above 800 cSt for sizing requirements.
Fluid Compatibility

Petroleum and mineral based fluids, #2 diesel fuels (standard). For specified synthetics contact factory for compatibility with fluorocarbon seal option. For phosphate ester (P9) or skydrol fluid (S9) compatibility select fluid compatibility from special options.

Hazardous Environment Options

Select pneumatic powered unit (Power Option 00) or explosion proof NEC Article 501, Class 1, Division 1, Group C+D. Call for IEC, Atex or other requirements. If Explosion Proof option (X--) selected, no electrical cord will be included.
