MF3 Medium Pressure Filter Assemblies Specifications

MF3 Medium Pressure Filter Assemblies

Ideal for mobile equipment return line applications as an alternative to spin-ons, on-board fuel and dispensing and hydrostatic charge circuits.

Max Operating Pressure: 1,200 psi (83 bar)

Overview
Specs

MF3 Installation Drawing

operating temperature

Fluid Temperature

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 140°F

(-20C to 60C)

Operating Pressure

1200 psi (83 bar) max

Burst Pressure

3000 psi (206.8 bar) max

Element Collapse Rating

290 psid (20 bard)

Materials of Construction

Head

Cast aluminum

Bowl

L4/L8: Cast aluminum

L13/L16: Anodized impact extruded aluminum

Element Bypass Valve

Nylon

Element End Caps

Zinc or Tin coated carbon steel

Media Description

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

Fluid Compatibility

Petroleum and mineral based fluids (standard). For polyol ester, phosphate ester, and other specified synthetic fluids use fluorocarbon seal option or contact factory.

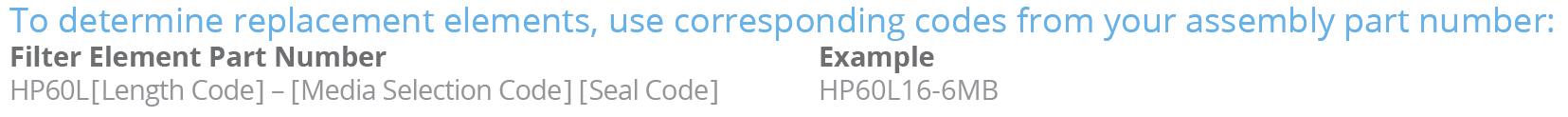

Replacement Elements

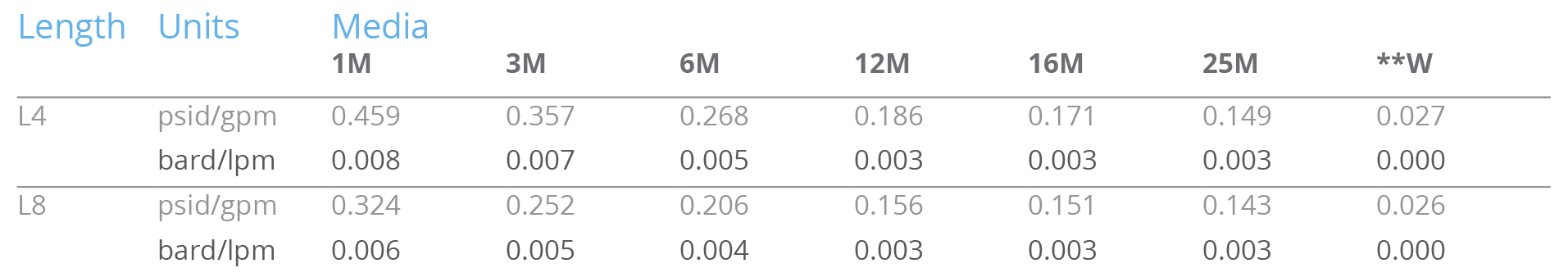

ΔP FACTORS

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.

Filter Sizing Chart

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.
