F8 Medium Pressure Filter High Flow Filter Assembly Specifications

F8 Medium Pressure Filter High Flow Filter Assembly

Ideal for high viscosity lubricating fluids, high flow hydraulic, and heavily contaminated fuel applications. Drop-in mounting interchange for common pulp and paper industry 8300/8310/8314 filter assemblies.

Max Operating Pressure: 500 psi (34.5 bar)

F8 Medium Pressure Filter High Flow Filter Assembly

Overview
Specs

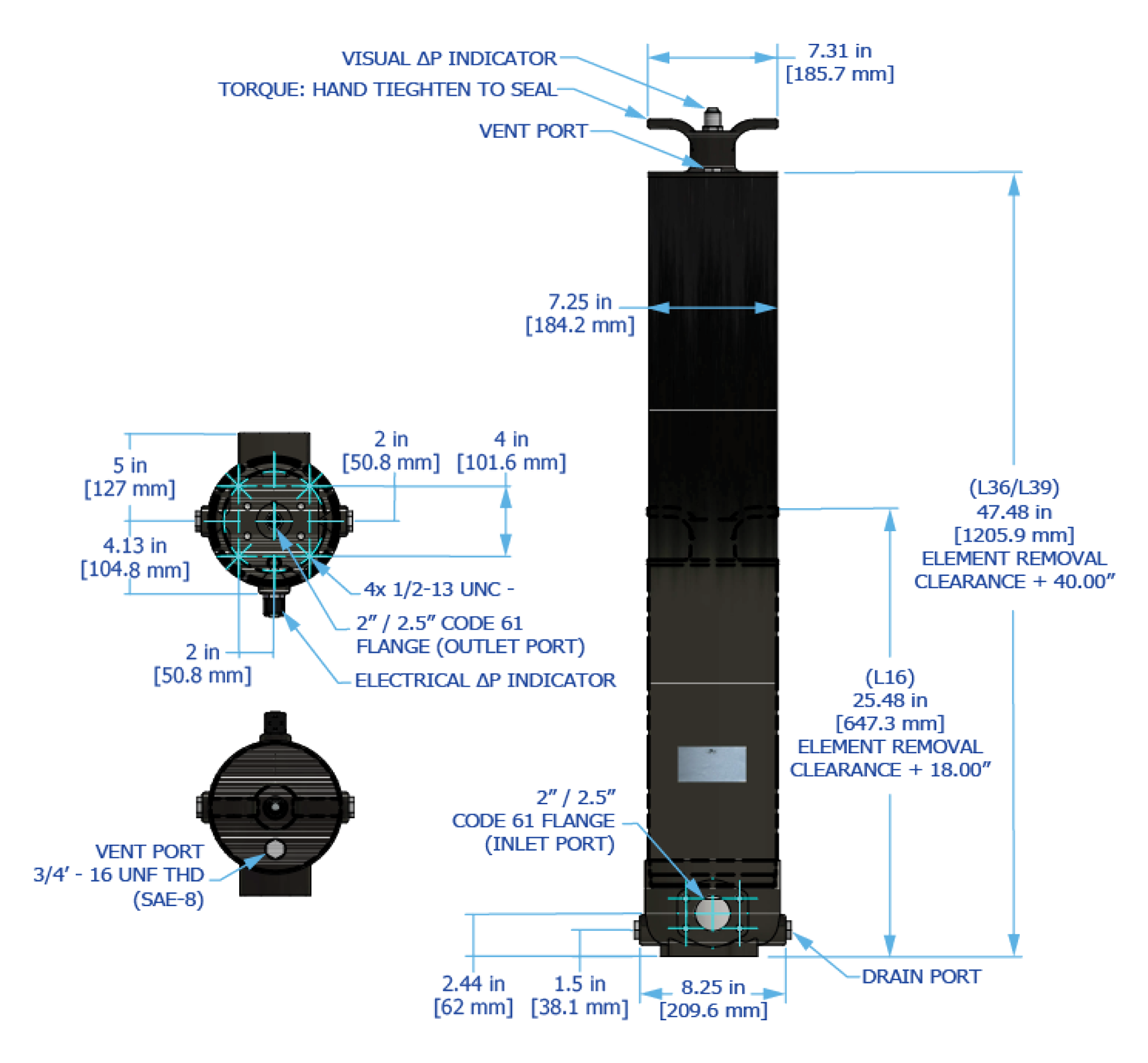

F8 Drawing

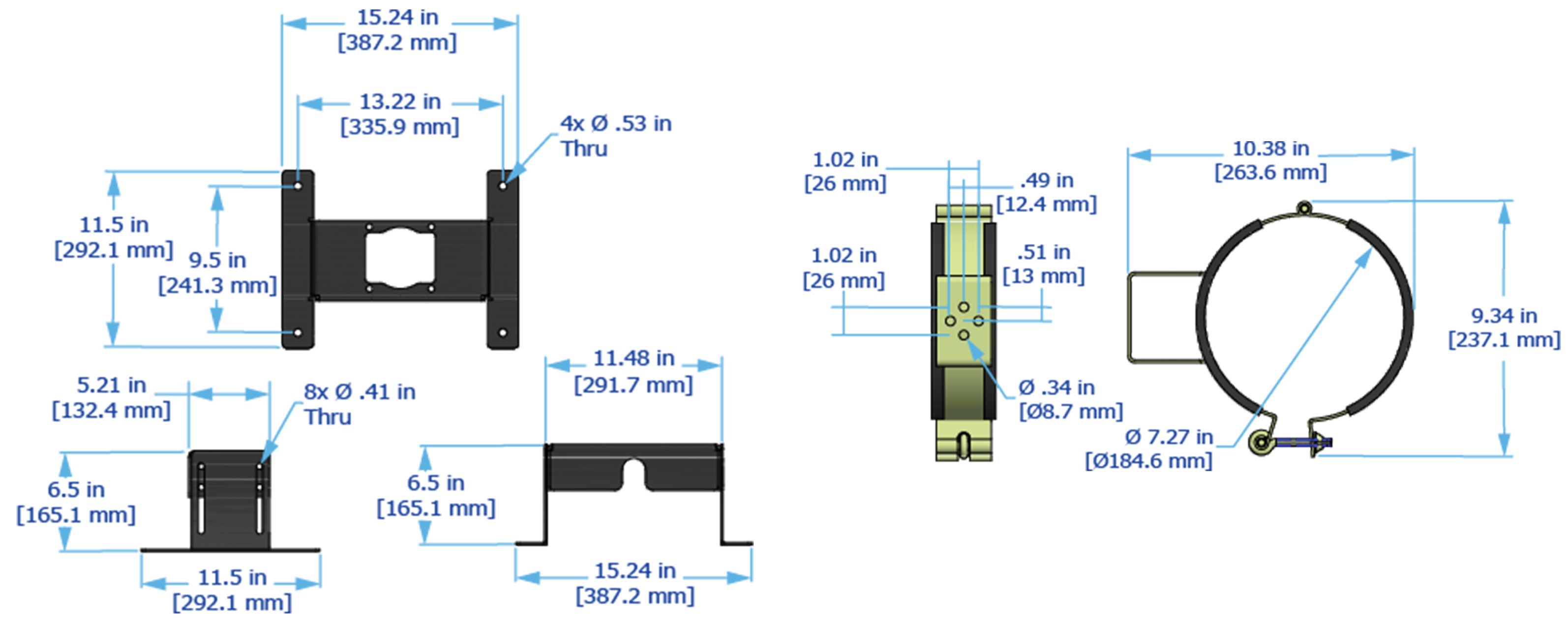

M1 Option Mounting Stand & M2 Option Stabilizing Bracket

M1 Option Mounting Stand & M2 Option Stabilizing Bracket

ΔP INDICATOR TRIGGER

15 psi (1 bar): 25 psid bypass

35 psi (2.4 bar): 50 psid bypass + non bypass

Operating Pressure

500 psi (34.5 bar) max

OPERATING TEMPERATURE

-20°F to 250°F

(-29°C to 121°C)

materials of Construction

Head/Lid

Cast aluminum (anodized)

Bowl

Industrial coated steel

Media Description

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000 (βx ≥ 200)

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

VTM

β3[C] ≥ 4000 particulate, insoluble oxidation by-product and water removal media

Fluid Compatibility

Petroleum and mineral based fluids, #2 diesel fuels (standard). For polyol ester, phosphate ester, and other specified synthetic fluids use fluorocarbon seal option or contact factory.

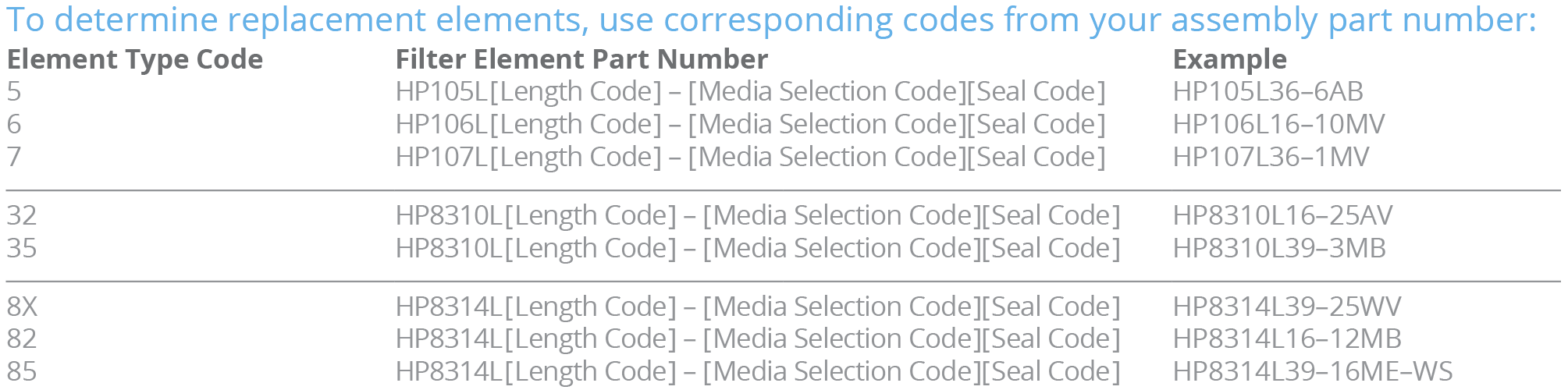

Replacement Elements

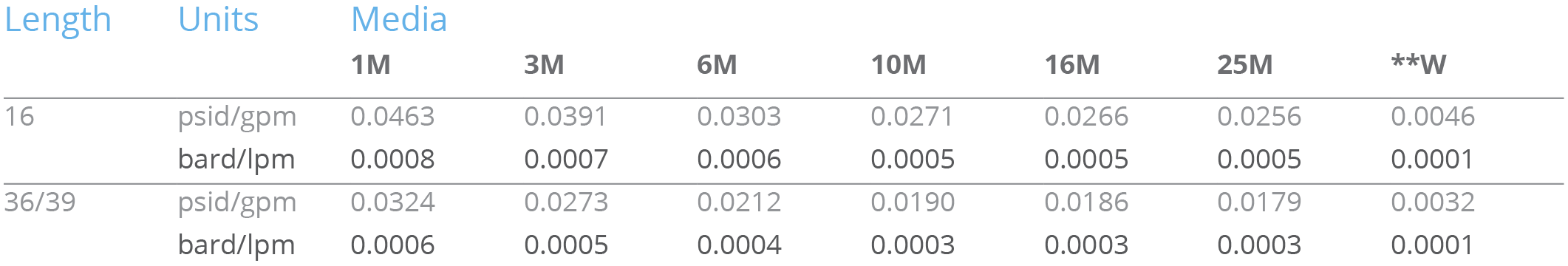

ΔP Factors

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.

Filter Sizing Chart

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.
