S75-76 Low Pressure Spin-On Filter Assemblies Specifications

S75-76 Low Pressure Spin-On Filter Assemblies

Hy-Pro low pressure S series filters are designed for installation on the return line to remove contaminant ingested or generated by the system. Functions include off-line filtration (kidney loop or filter cart) and some suction applications.

Ideal for automotive manufacturing and assembly machine tools, mobile applications such as waste haulers and transit, filter carts and filter panels, and power unit return line/suction.

Max Operating Pressure: 200 psi (13.8 bar)

Overview
Specs

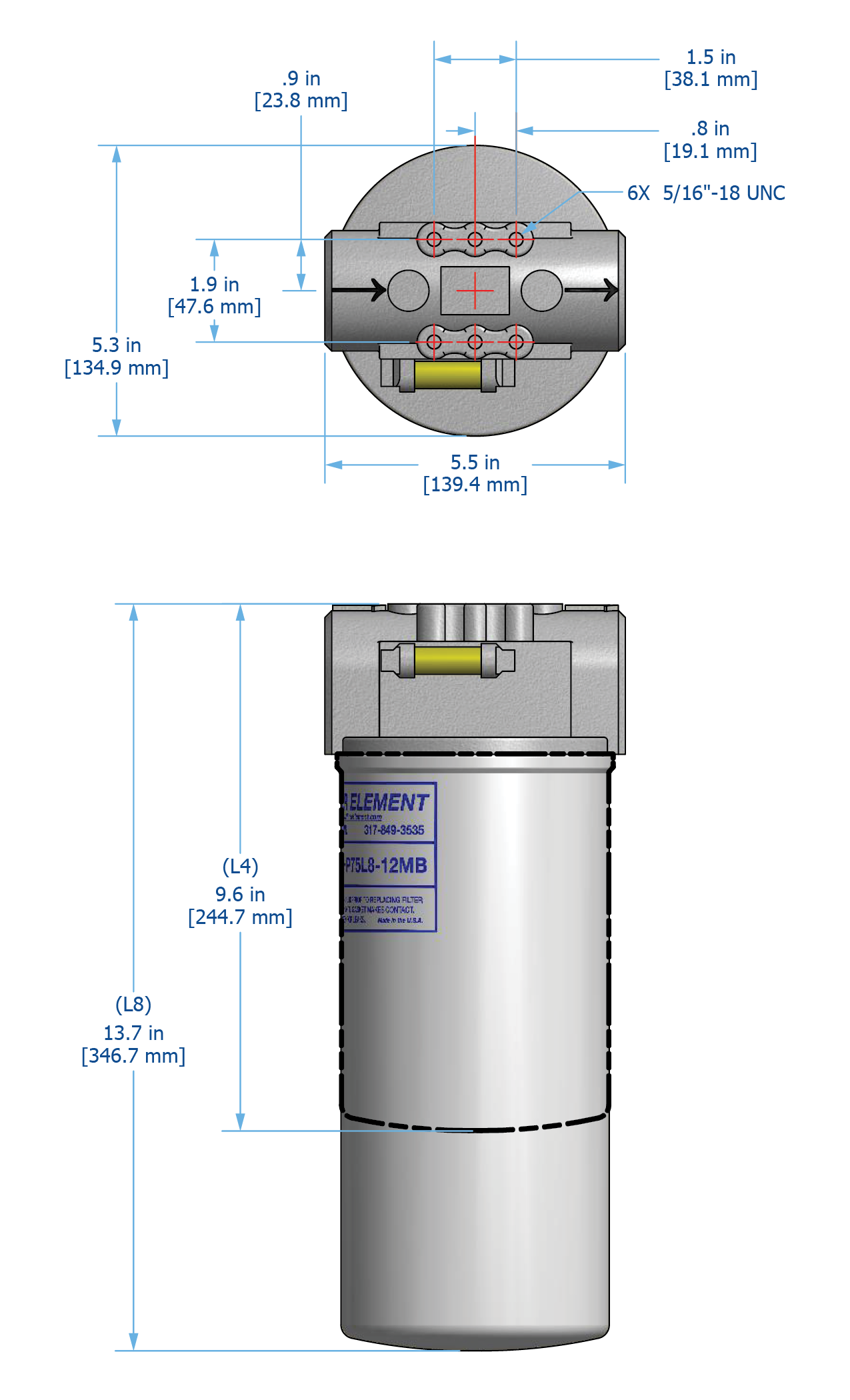

S75 Drawing

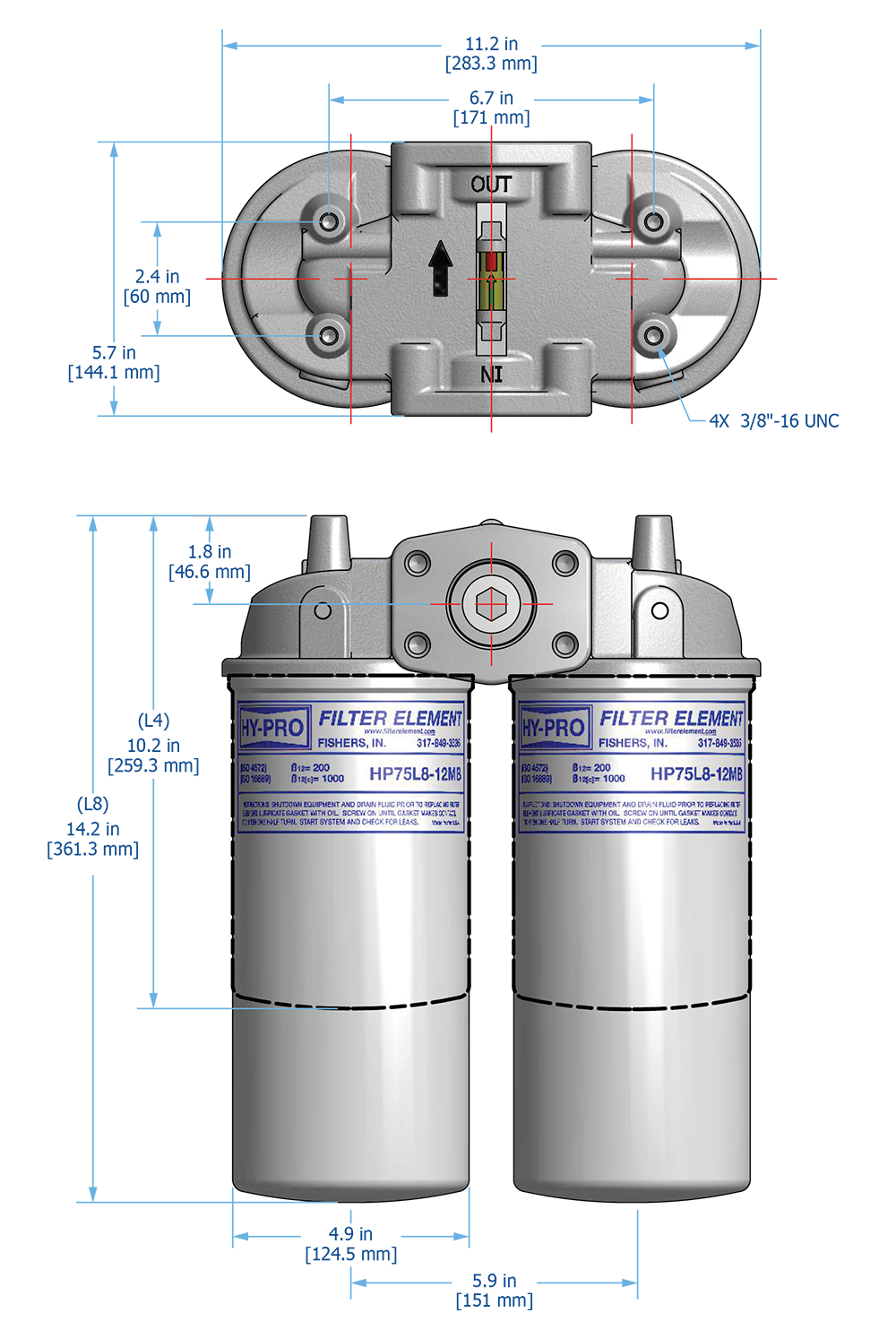

S75D Drawing

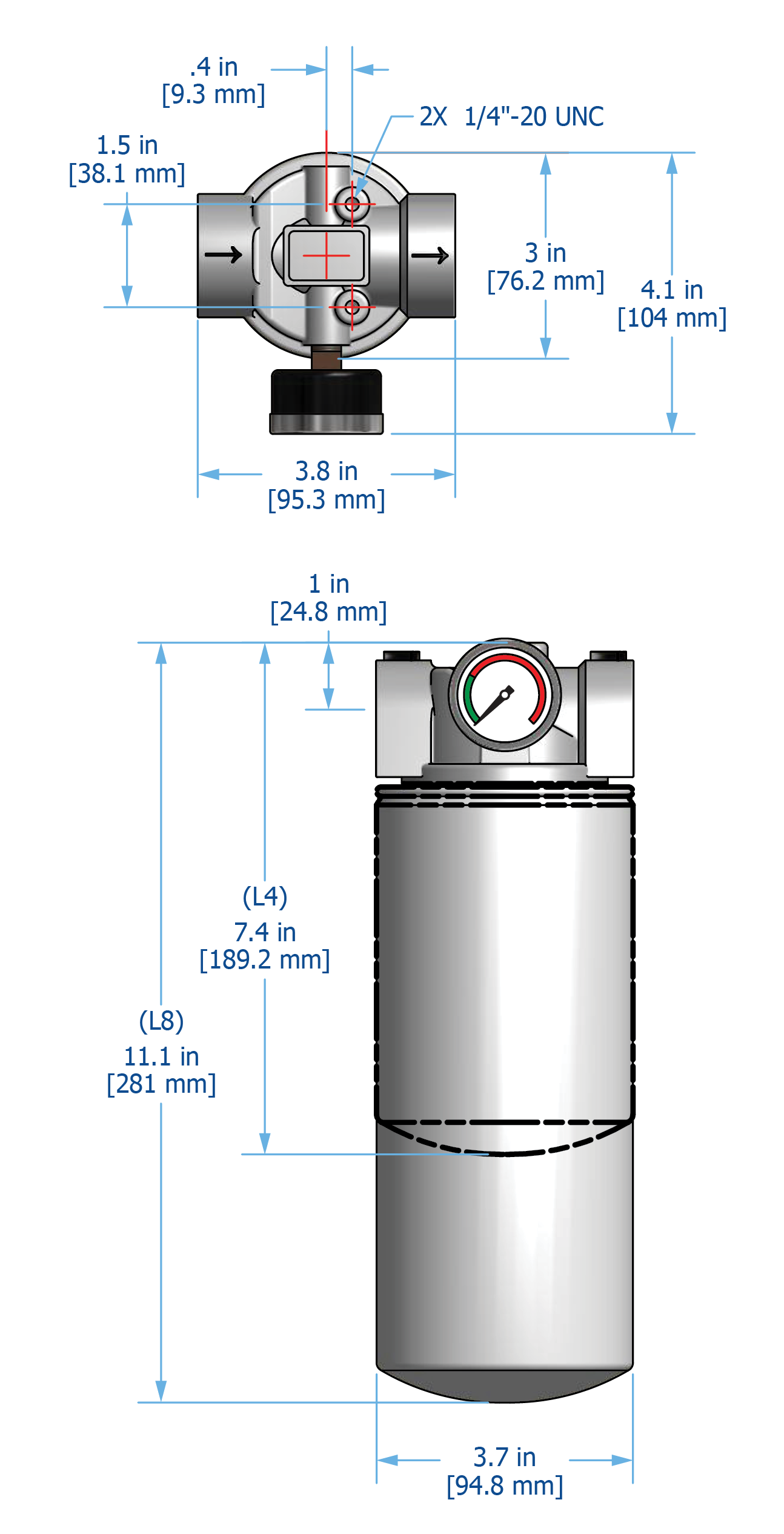

S76 Drawing

Operating Temperatures

Fluid Temperature

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 140°F

(-20C to 60C)

Operating Pressure

200 psi (13.8 bar) max

ΔP INdicator Trigger

22 psi (1.5 bar) or 44 psi (3.0 bar)

Element Collapse

100 psid (6.9 bard) max

Materials of Construction

Head

Cast aluminum

Can

Stamped steel

Element Bypass Valve

Nylon

Element End Caps

Zinc or Tin coated carbon steel

Media Description

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

FLUID COMPATIBILITY

Petroleum and mineral based fluids (standard). For polyol ester, phosphate ester, and other specified synthetic fluids use fluorocarbon seal option or contact factory.

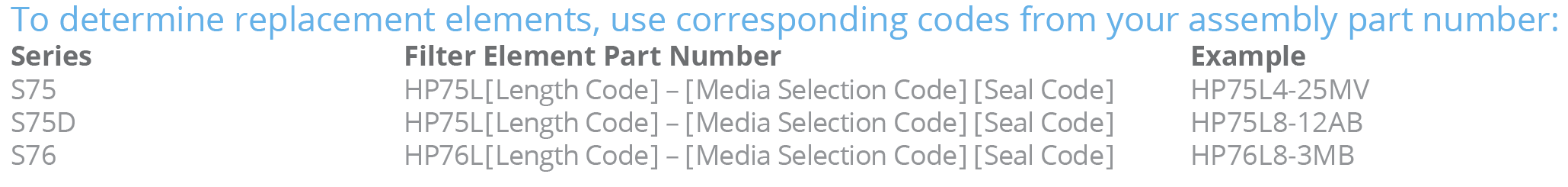

Replacement Elements

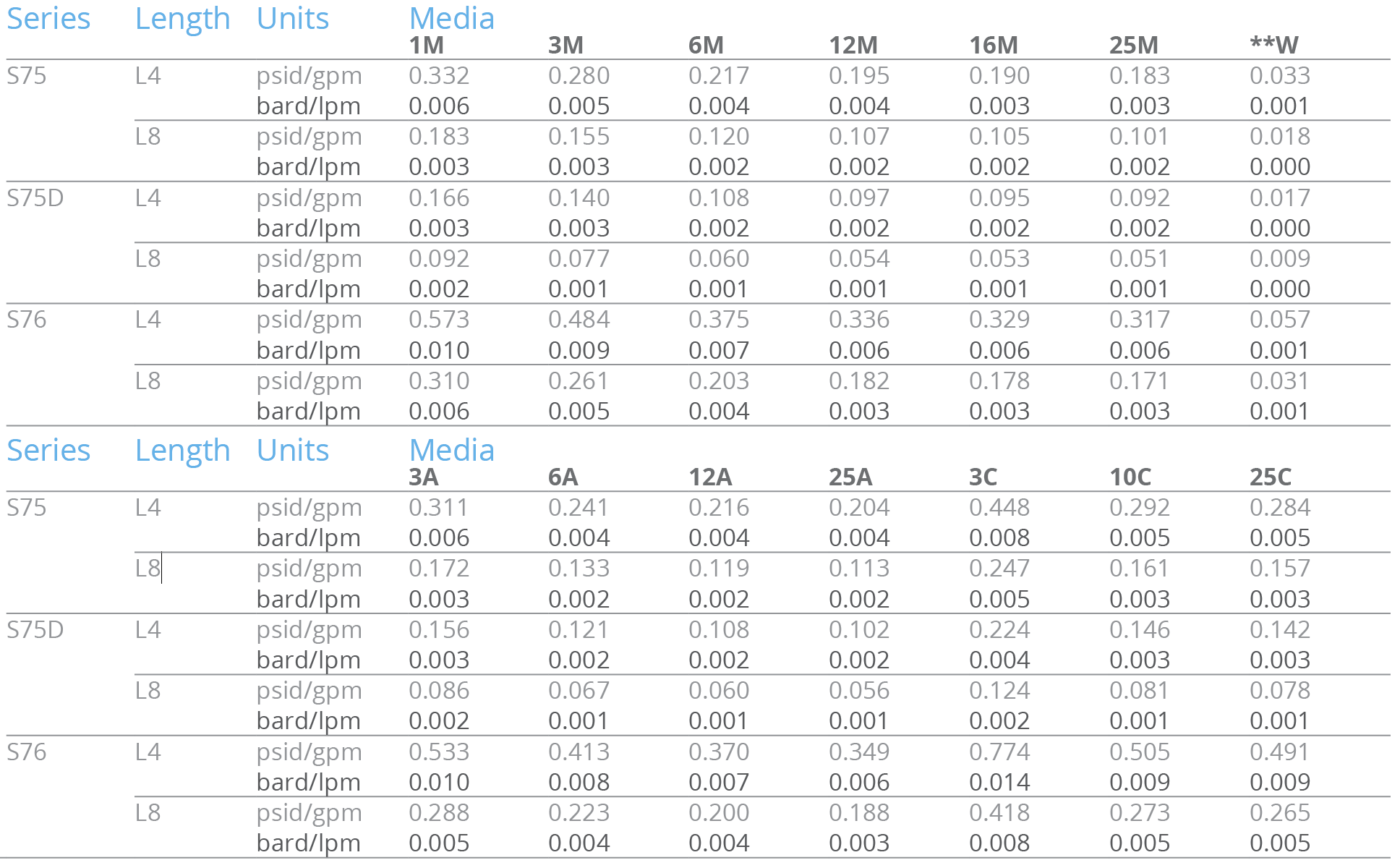

ΔP Factors

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.

Filter Sizing

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.
