TFR1 In-Tank Return Line Filter Assembly Specifications

TFRC In-Tank Return Line Filter Assembly

Donaldson Hy-Pro TFRC in-tank filter assemblies are ideal for particulate contamination removal in small hydraulic power units and mobile equipment where a tank breather is not integrated into the filter head.

Max Operating Flow: 40 gpm (151 lpm)

Max Operating Pressure: 150 psi (10 bar)

Overview
Specs

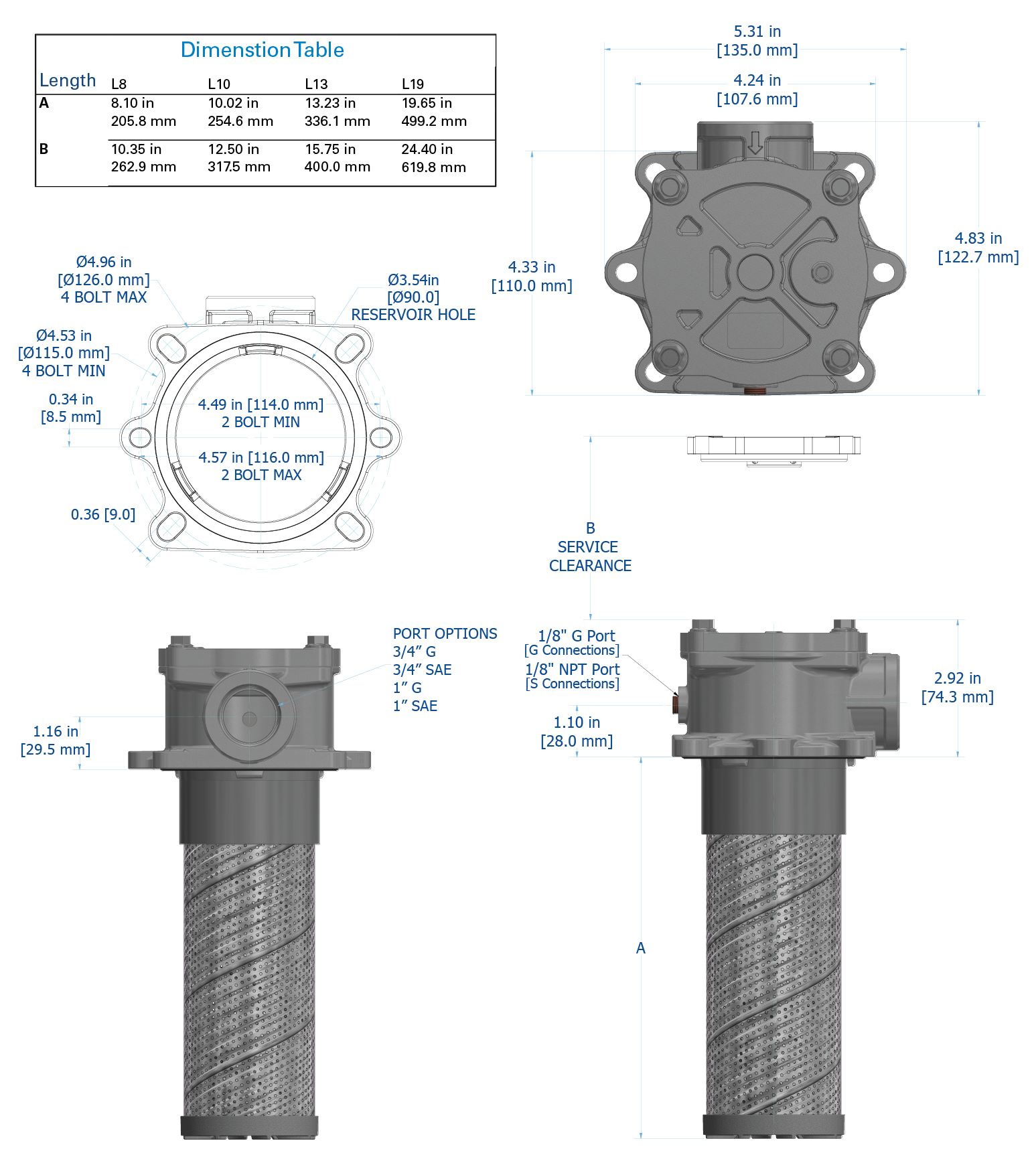

TFRC Drawing

OPERATING TEMPERATURE

Fluid Temperature

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 140°F

(-20C to 60C)

OPERATING PRESSURE

150 psi (10 bar) maximum

PRESSURE SWITCH TRIGGER

22 psi (1.5 bar)

45 psi (3.1 bar)

VISUAL GAUGE

0-22 psi (0-1.5 bar), green to red

0-45 psi (0-3.1 bar), green to red

ELEMENT COLLAPSE RATING

100 psid (6.9 bard)

INTEGRAL BYPASS SETTING

25 psid (1.7 bard) standard. For 50 psid (3.4 bard) option, select Bypass Option “3” in Assembly Part Number Builder and add “-50” to the end of Replacement Element part number.

MATERIALS OF CONSTRUCTION

Head

Cast aluminum

Diffuser

Powder coated or plated steel

Element Bypass Valve

Plated steel

MEDIA DESCRIPTION

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

FLUID COMPATIBILITY

Petroleum and mineral based fluids (standard). For polyol ester, phosphate ester, and other specified synthetic fluids use fluorocarbon seal option or contact factory.

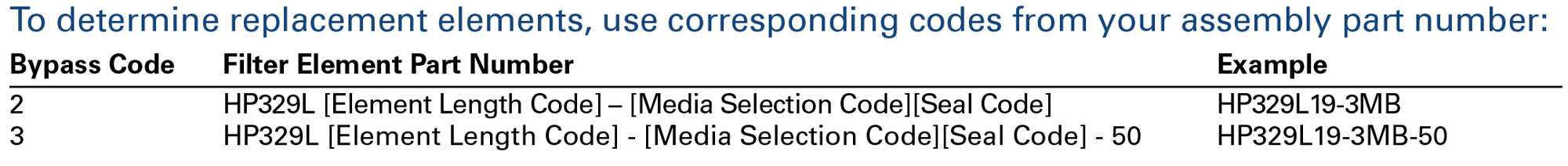

REPLACEMENT ELEMENTS

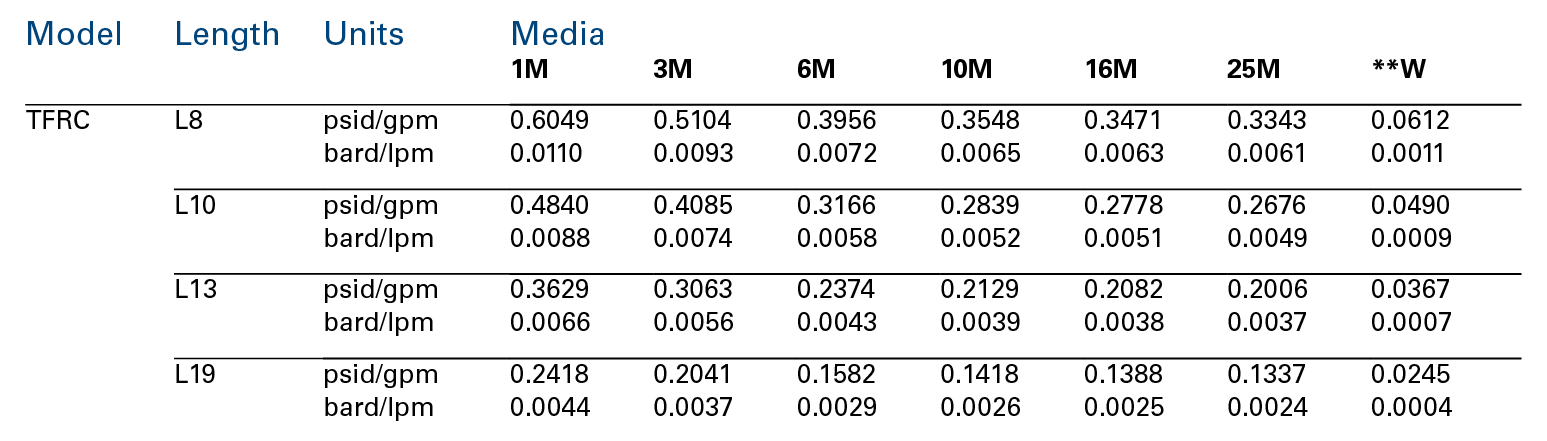

ΔP FACTORS

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.

FILTER SIZING CHART
