PF2 High Pressure In-Line Filter Assembly

Ideal for a variety of applications including mobile applications, paper and saw mills, power generation, general industrial machine tools, and automotive manufacturing. With HF2 compatible port-to-port dimension, mounting pattern, and element design to meet the automotive manufacturing standard.

Max Operating Pressure: 4000 psi (275 bar)

PF2 High Pressure In-Line Filter Assembly

Overview
Specs

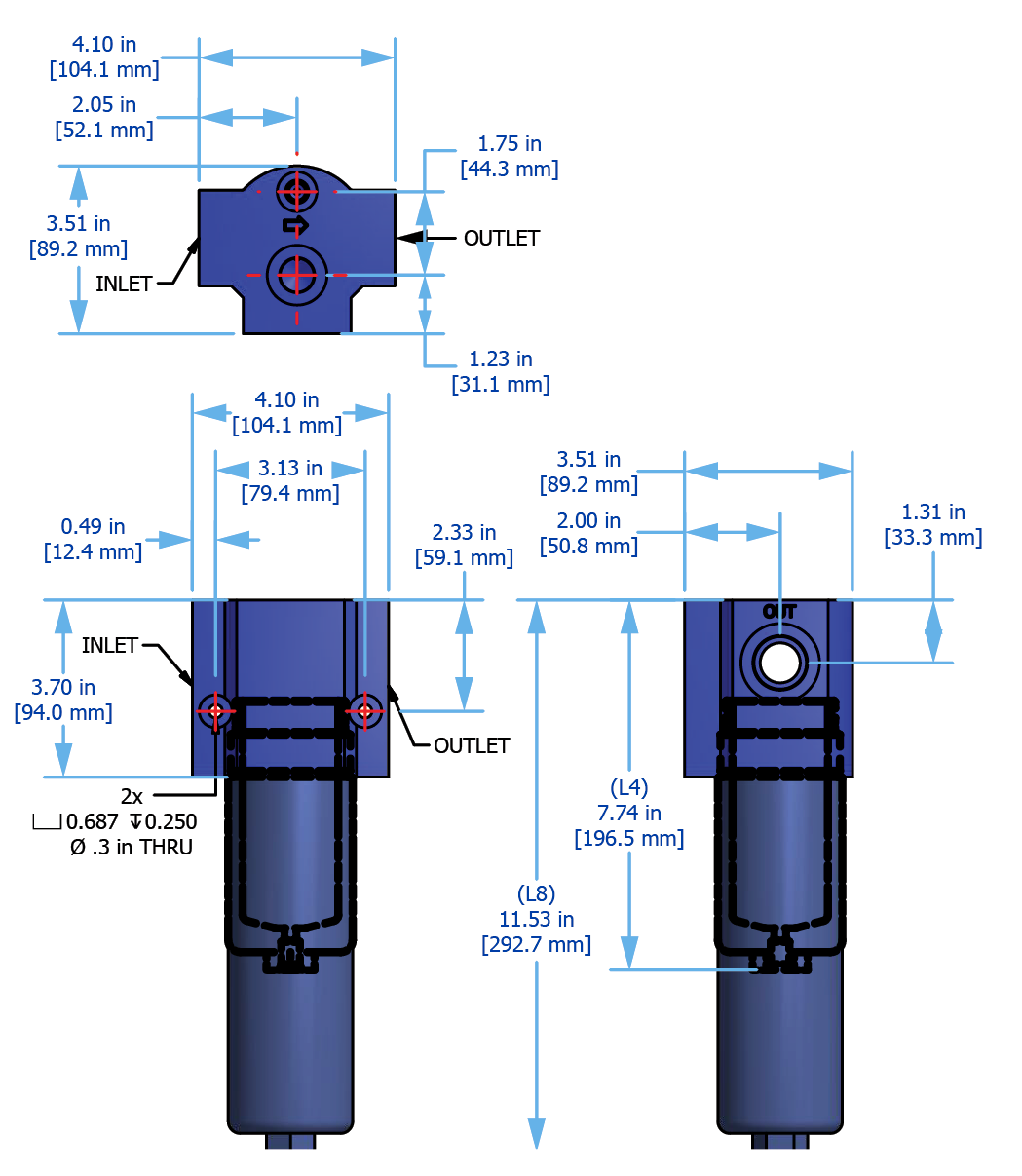

In-Line Mount Drawing

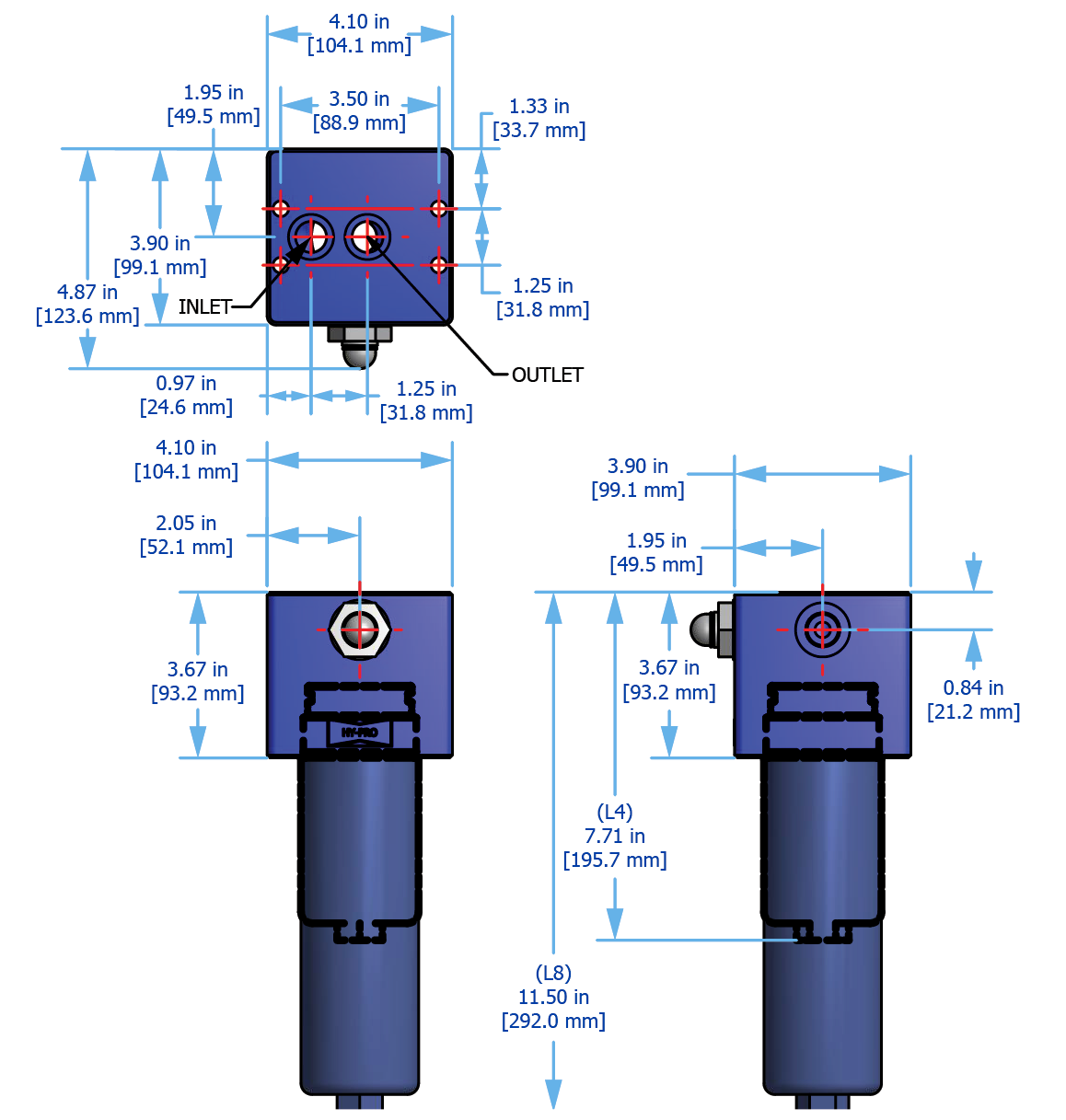

Manifold Mount Drawing

Operating Temperature

Fluid Temperature

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 140°F

(-20C to 60C)

Operating Pressure

4000 psi (275 bar) max

Flow Fatigue Rating

2000 psi (137 bar)

Burst Pressure

12,000 psi (827 bar) max

ΔP Indicator Trigger

30 psid (2.4 bard) for 50 pside (3.4 bard) bypass.

70 psid (4.8 bard) for 90 pside (6.2 bard) bypass.

100 psid (6.9 bard) for no bypass.

Element Collapse Rating

Normal Collapse

290 psid (20 bard)

High Collapse

3000 psid (206 bard)

Integral Bypass Setting

50 psid (3.4 bard)

90 psid (6.2 bard)

Materials of Construction

Head

Anodized aluminum (grade T6061)

Bowl

Anodized aluminum (grade T6061)

Bowl drain #4 SAE standard

Element Bypass Valve

Nickel plated/Stainless steel

Element End Caps

Zinc or Tin coated carbon steel

Media Description

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000

SF

Dynafuzz stainless steel fiber media βx[C] ≥ 4000

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

Fluid Compatibiliy

Petroleum and mineral based fluids (standard). For polyol ester, phosphate ester, and other specified synthetic fluids use fluorocarbon seal option or contact factory.

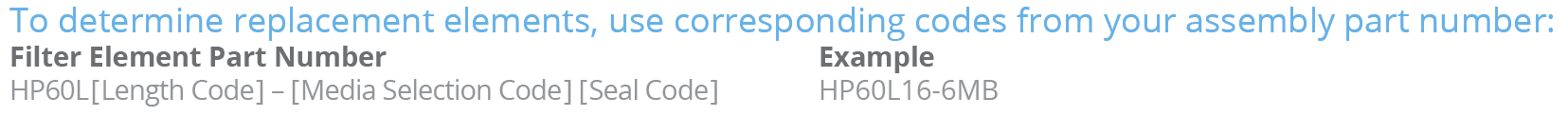

Replacement Elements

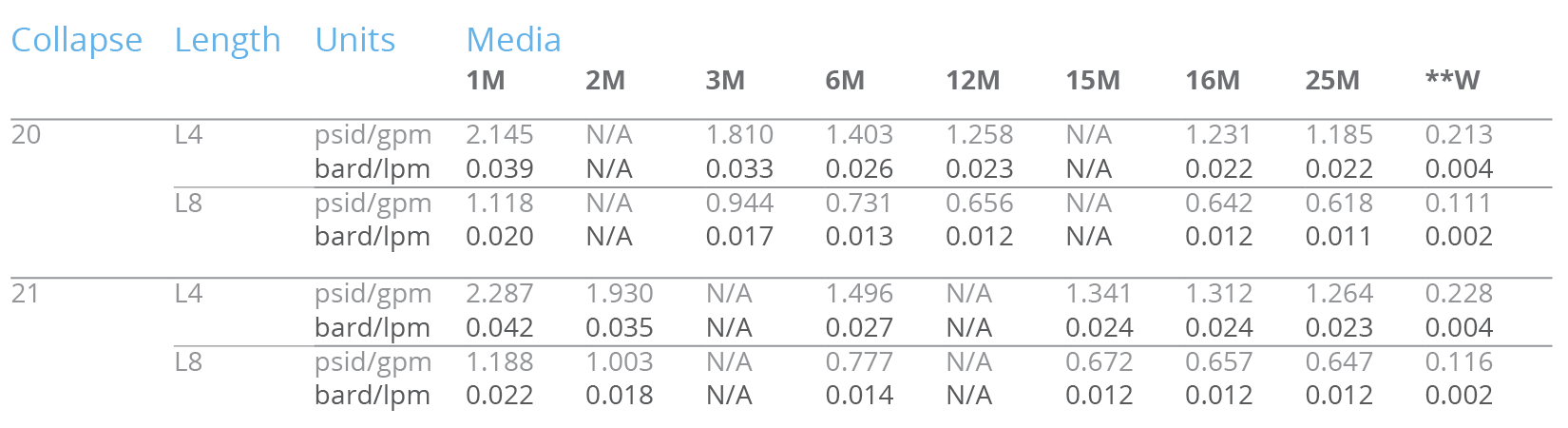

ΔP Factor

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.

Filter Sizing chart

Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.
